PlaneTRack BDM
PlaneTRack Type BDM is the ideal solution for dual power receiver sites that require 19″ plug-n-play rack inserts.
INNOVATIVE LOW COST SURVEILLANCE SOLUTIONS
PlaneTRack Type BDM is a complete professional ADS-B receiving system kit with a dual redundant DC power supplies, one rugged environment ADS-B antenna and GPS antenna/clamp and one antenna line surge protector.
PlaneTRack Type BDM is the ideal solution for dual power receiver sites that require 19″ plug-n-play rack inserts.
APPLICATION EXAMPLES
- Surveillance of industrial complexes, such as power stations, offshore wind farms, critical infrastructure
- Enhancement of AIS surveillance systems on vessels and land based
- Support for mobile and stationary defense systems
PLUG-AND-PLAY KIT
PlaneTRack Type BDM is supplied as a complete ready-to-install system kit. It comes with a rugged ADS-B antenna and GPS antenna/clamp by AMPHENOL PROCOM for harsh environment, and an antenna line surge protector by CITEL. Also we offer a display software from CAMBRIDGE PIXEL as options.
KEY FEATURES
- Industry grade 1090 MHz ADS-B receiver, processor and decoder

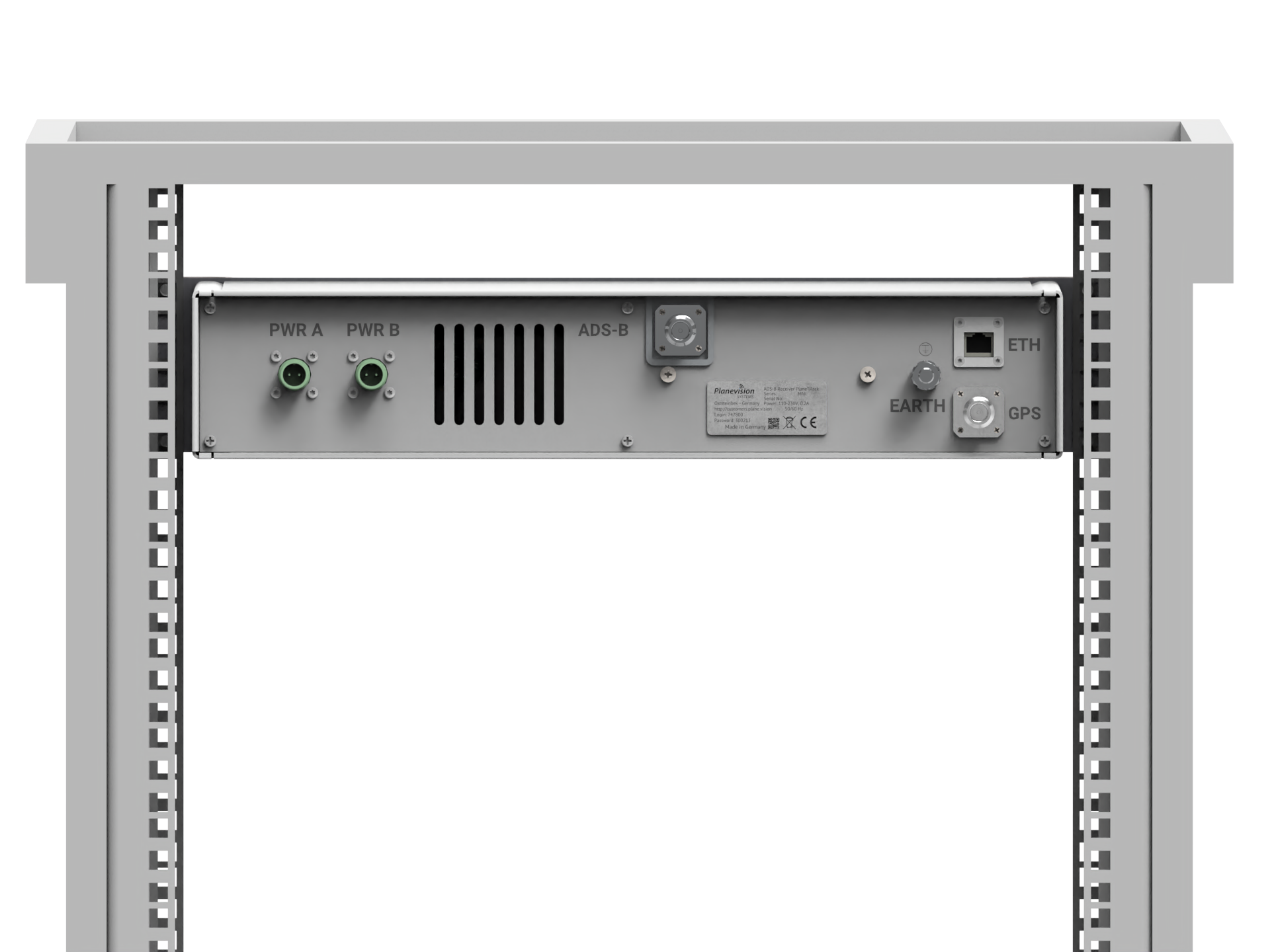

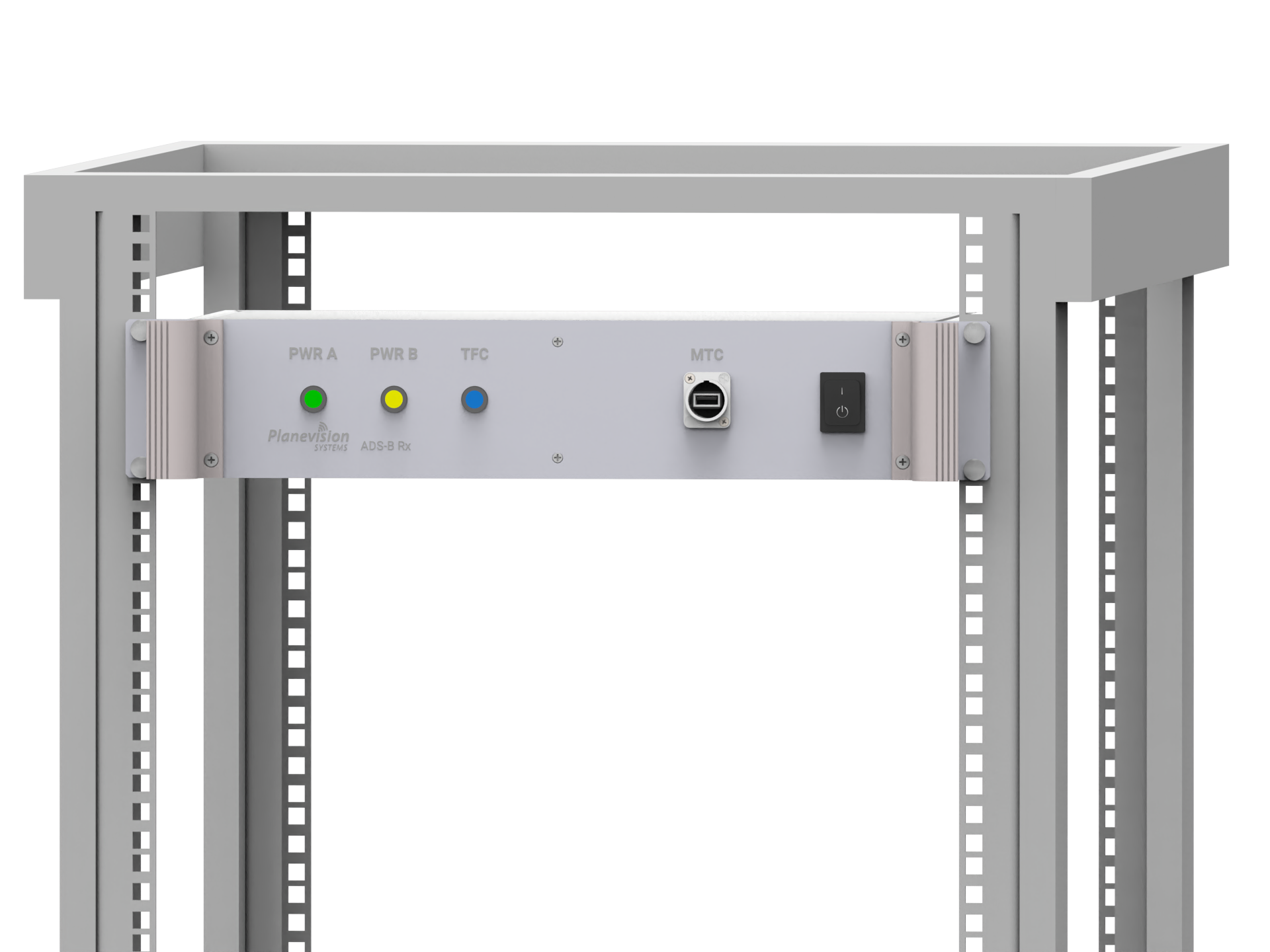

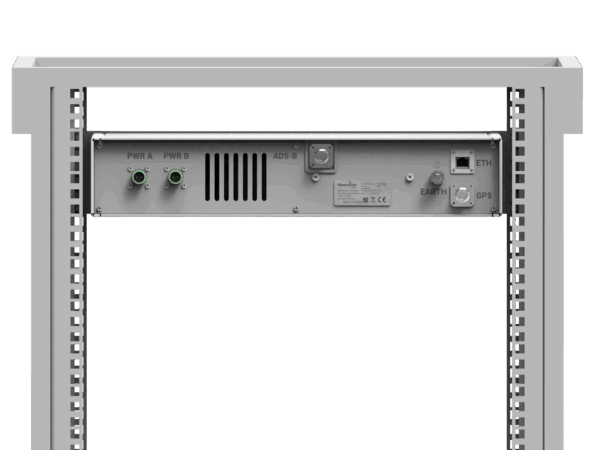

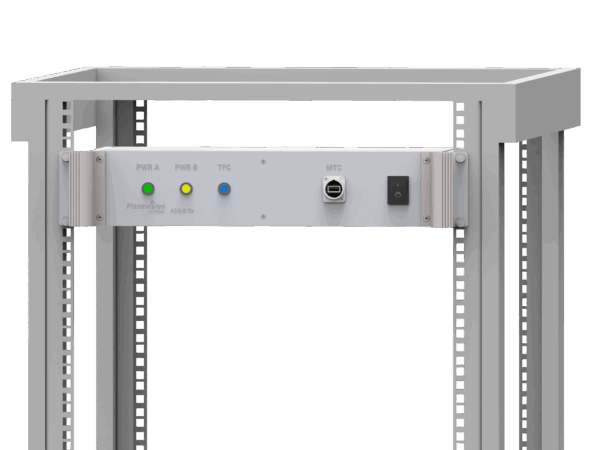

- Standard 19 inch 2U enclosure
- 9-72VDC or 115-230VAC Power Supply
- Full network connectivity (Ethernet)
- Variety of data output formats
- Open software architecture for tailored solutions
- Accessories from well-known manufacturers
UNIFIED DATA FORMATS
PlaneTRack, DroneTRack and VesselTRack systems provide standardized data output formats, enabling seamless integration into shared downstream processing and visualization systems. For example aircraft data can be transmitted to vessel systems in NMEA/IEC format, while vessel data to aircraft systems in ASTERIX format.
PRODUCT FAMILY
PlaneTRack, DroneTRack, and VesselTRack are part of a family of professional 1U/2U, 10/19-inch rack-mounted ground station kits designed for cost-effective industrialand defense (naval) surveillance applications.
These systems integrate advanced signal reception and processing technology, offering exceptional long-range RF sensitivity, rapid decoding, and versatile data output formats via a unified network interface.
Featuring an open software architecture, the kits can be easily customized to meet specific client requirements.
Weight | 3 kg |
---|---|
Dimensions | 26,6 × 482,6 × 88,1 cm |
Receiver | ADS-B |
Rack Width | 19 Inch |
Rack Height | 2U |
Extended Temperature | Standard (-10°-+50°C), Option H: EXTTEMP (-30°-+70°C) |
Power supply (internal) | Option E: 12VDC Input, Option F: 24VDC Input, Option G: 48VDC Input |
PSU (external) | Standard: no ext. PSU, Option KK: 2 ea. ext. PSU |
SNMP | Standard: no SNMP, Option S: on-device SNMP client |
