UAT AS STANDARD FOR UAV SURVEILLANCE IN UK
Ofcom and the CAA have authorised the use of 978 MHz spectrum for Universal Access Transceivers (UAT) on drones, enabling safety devices that broadcast drone positions to other aircraft and support critical applications like infrastructure inspection. This spectrum, previously shared with outdoor PMSE users, will now be reserved for aeronautical use outdoors, while PMSE users gain access to expanded alternative frequencies. Planevision Systems GmbH supports this development with a UK version of DroneTrack by adding UAT to its capabilities.
INNOVATIVE LOW COST SURVEILLANCE SOLUTIONS
DroneTRack UK is a cost-efficient, professional receiver ground station tailored for monitoring position and other data from UAVs and small aircraft.
APPLICATION EXAMPLES
- Surveillance of industrial complexes, such as power stations, offshore wind farms, critical infrastructure
- Enhancement of ADS-B and AIS surveillance systems
- Support for mobile and stationary defense systems
PLUG-AND-PLAY KIT
DroneTRack UK is supplied as a complete ready-to-install system kit. It comes with 6 independant receivers, integrated bias-tees for active antennas (integrated preamps). DroneTRack can feed into the same display software by CAMBRIDGE PIXEL (option).
KEY FEATURES
- Receives and decodes: DRI (mandatory FAA/EASA Drone Remote ID), ADS-L (EASA), FANET, FLARM, OGN, PILOTAWARE
- Receiver for UAT (978 MHz)
- Four 470/863/915 MHz and two 2.4 GHz/5 GHz* independant data receivers, a processor and decoder *2026
- Standard 19 inch 2U enclosure
- 9-72VDC or 115-230VAC Power Supply
- Full network connectivity (Ethernet)
- Variety of data output formats
- Active antennas with integrated pre-amplifier. Bias tee integrated in case.
- Open software architecture for tailored solutions
UNIFIED DATA FORMATS
PlaneTRack, DroneTRack and VesselTRack systems provide standardized data output formats, enabling seamless integration into shared downstream processing and visualization systems. For example aircraft data can be transmitted to vessel systems in NMEA/IEC format, while vessel data to aircraft systems in ASTERIX format.
PRODUCT FAMILY

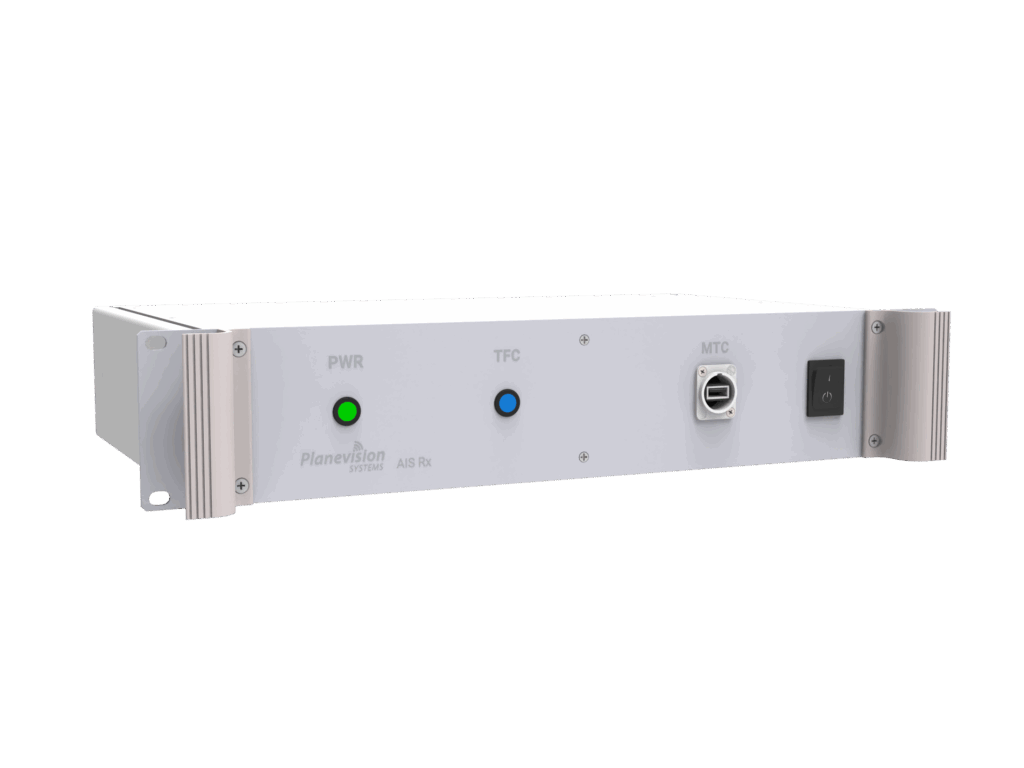

PlaneTRack, DroneTRack, and VesselTRack are part of a family of professional 1U/2U, 10/19-inch rack-mounted ground station kits designed for cost-effective industrialand defense (naval) surveillance applications.
These systems integrate advanced signal reception and processing technology, offering exceptional long-range RF sensitivity, rapid decoding, and versatile data output formats via a unified network interface.
Featuring an open software architecture, the kits can be easily customized to meet specific client requirements.
