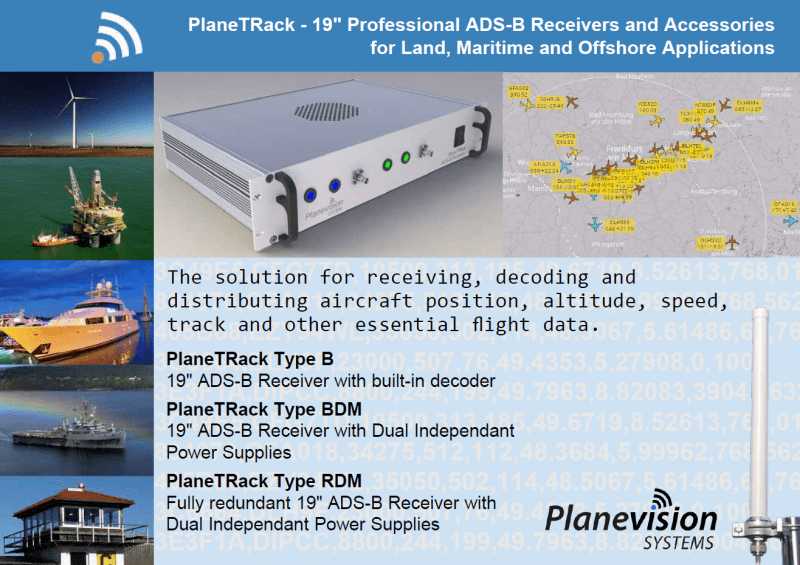

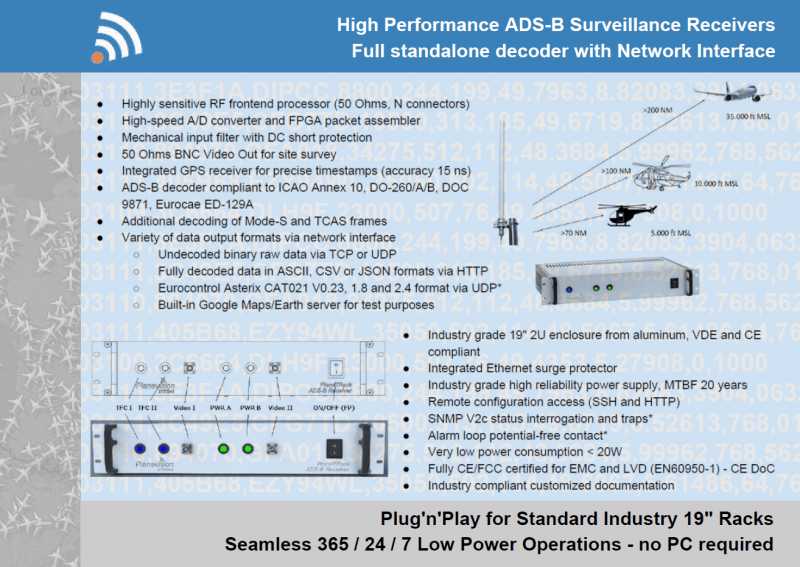

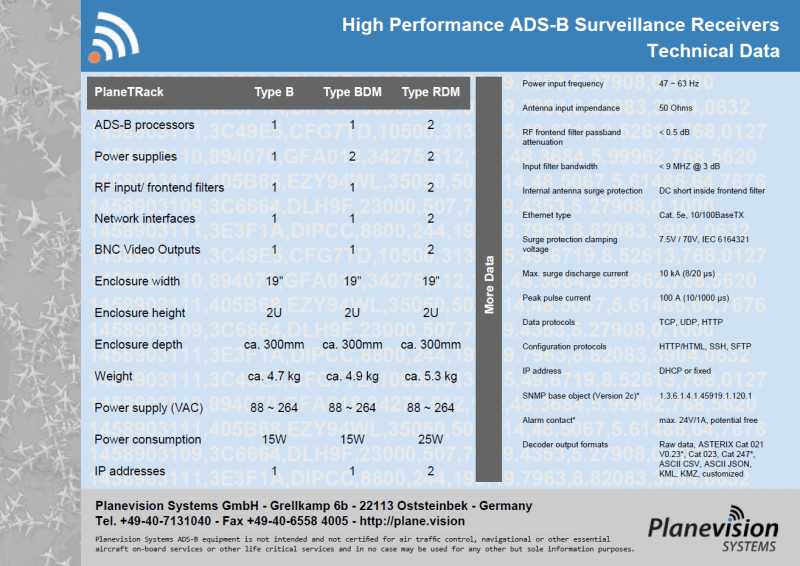

PlaneTRack ADS-B receivers are available as professional rack inserts. We offer standard 19″ 2U inserts for existing or new racks.
PlaneTRack Type B is a complete ADS-B ground station with a single AC power supply, one ADS-B antenna/clamp, one GPS antenna/clamp and two antenna line surge protectors.
PlaneTRack Type B is the ideal solution for receiver sites that require 19" plug-n-play rack inserts.
PlaneTRack Type B10 is a complete ADS-B receiving systems with a single AC power supply, one ADS-B antenna/clamp, one GPS antenna/clamp and two antenna line surge protectors. PlaneTRack Type B10 is the ideal solution for space critical receiver sites that require 10" plug-n-play mini-rack inserts.
PlaneTRack Type BDM is an ADS-B receiving systems with a dual redundant AC power supply, one ADS-B antenna/clamp, one GPS antenna/clamp and two antenna line surge protectors. PlaneTRack Type BDM is the ideal solution for receiver sites that require power fall back redundancy (e.g. offshore sites).

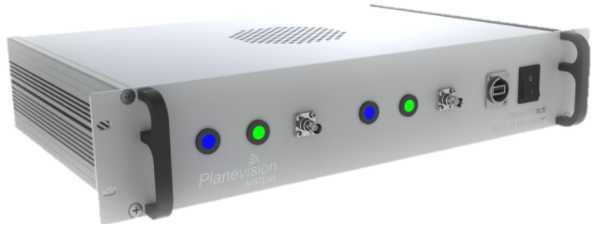

PlaneTRack Type RDM is a fully redundant ADS-B ground station with an dual independent channel ADS-B receiver, dual redundant AC power supply, two ADS-B antennas/clamps, two GPS antennas/clamps and four antenna line surge protectors.
PlaneTRack Type RDM is the ideal solution for receiver sites that require full redundancy or dual antennas that are required due to partially obstructed views.
FLARM is a traffic awareness and collision avoidance technology with more than 35,000 installations worldwide. FLARM ground equipment will supplement ADS-B in many low altitude airspaces for a complete coverage.
PlaneTRack Type B-FLARM is a complete ADS-B/FLARM ground station with a single 115/230V AC power supply, one ADS-B antenna/clamp, one FLARM active antenna/clamp, one GPS antenna/clamp and two antenna line surge protectors (for ADS-B and GPS antenna lines).
PlaneTRack Type B-FLARM is the ideal solution for receiver sites that require 19" plug-n-play rack inserts with an approved OEM-licensed FLARM ground station.
The device is delivered with a 21dB active outdoor FLARM antenna and clamp. The FLARM data output is fully integrated into the ADS-B receiver output, with Asterix CAT021, JSON, CSV and other output formats.
